Is a carbon fiber insulation tube suitable for vacuum sintering furnaces?
Yes, carbon fiber insulation tubes are suitable for pressure sintering furnaces and vacuum sintering furnaces.
Advantages of Use
- Carbon fiber insulation tubes are suitable for both pressure and vacuum sintering furnaces, offering sufficient strength, self-supporting ability, and high dimensional accuracy.
- Excellent thermal insulation performance; the tubes are integrally formed, do not fuzz or shed ash, and have a long service life.
- Specially designed hard felt structure ensures good consistency and excellent thermal uniformity.
- Materials and structural designs can be customized according to the specific application of different vacuum sintering furnaces.
Specifications
| Property | Value |
|---|---|
| Density | 0.16–0.35 g/cm³ |
| Flexural Strength | 2.0–2.5 MPa |
| Compressive Strength | 3.2–4.8 MPa |
| Heat Treatment Temperature | ≤ 2000°C |
| Thermal Conductivity | 0.10–0.30 W/(m·K) at RT |
| Ash Content | < 300 ppm |

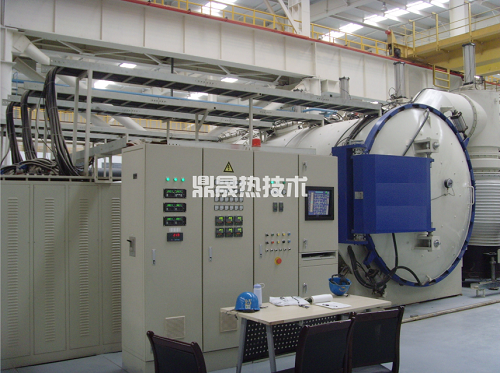

Vacuum sintering furnace materials are classified in detail, covering all products under vacuum sintering furnaces, including uses, scope, images, models, prices, and news. Selected industry information, exhibitions, and price trends are also available. Vacuum sintering furnaces are suitable for new materials, silicon carbide, boron carbide, crystal industries, precision ceramics, powder metallurgy, and other metals for vacuum sintering.
